swt::TimerManager::TimerInfo Struct Reference

Internal timer information structure. More...

#include <TimerManager.h>

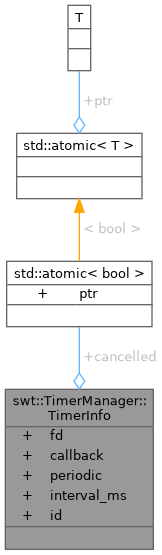

Collaboration diagram for swt::TimerManager::TimerInfo:

Public Attributes
int	fd
	timerfd file descriptor for Linux backend
std::function< void()>	callback
	User callback function to execute on timer expiry.
bool	periodic
	true for repeating timer, false for one-shot
uint64_t	interval_ms
	Timer interval in milliseconds.
TimerId	id
	Unique timer identifier.
std::atomic< bool > *	cancelled
	Pointer to cancellation flag (optional)

Detailed Description

Internal timer information structure.

This structure holds all information needed to manage a timer, including backend-specific data and common properties. The structure uses a union to minimize memory usage when only one backend is compiled.

Note

This is an internal structure and should not be used directly by client code.

Definition at line 152 of file TimerManager.h.

Member Data Documentation

callback

std::function<void()> swt::TimerManager::TimerInfo::callback

User callback function to execute on timer expiry.

Definition at line 159 of file TimerManager.h.

Referenced by swt::TimerManager::createTimer().

cancelled

std::atomic<bool>* swt::TimerManager::TimerInfo::cancelled

Pointer to cancellation flag (optional)

Definition at line 163 of file TimerManager.h.

Referenced by swt::TimerManager::createTimer().

fd

int swt::TimerManager::TimerInfo::fd

timerfd file descriptor for Linux backend

Definition at line 154 of file TimerManager.h.

Referenced by swt::TimerManager::createTimer().

id

TimerId swt::TimerManager::TimerInfo::id

Unique timer identifier.

Definition at line 162 of file TimerManager.h.

Referenced by swt::TimerManager::createTimer().

interval_ms

uint64_t swt::TimerManager::TimerInfo::interval_ms

Timer interval in milliseconds.

Definition at line 161 of file TimerManager.h.

Referenced by swt::TimerManager::createTimer().

periodic

bool swt::TimerManager::TimerInfo::periodic

true for repeating timer, false for one-shot

Definition at line 160 of file TimerManager.h.

Referenced by swt::TimerManager::createTimer().

---

The documentation for this struct was generated from the following file:

• include/TimerManager.h
