Message object for event-driven communication between threads and handlers. More...

#include <Message.h>

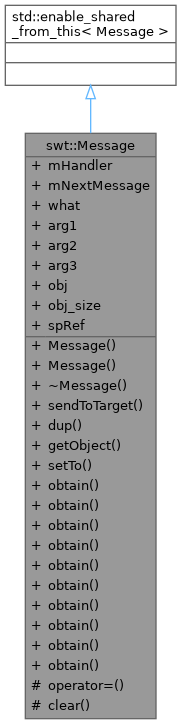

Inheritance diagram for swt::Message:

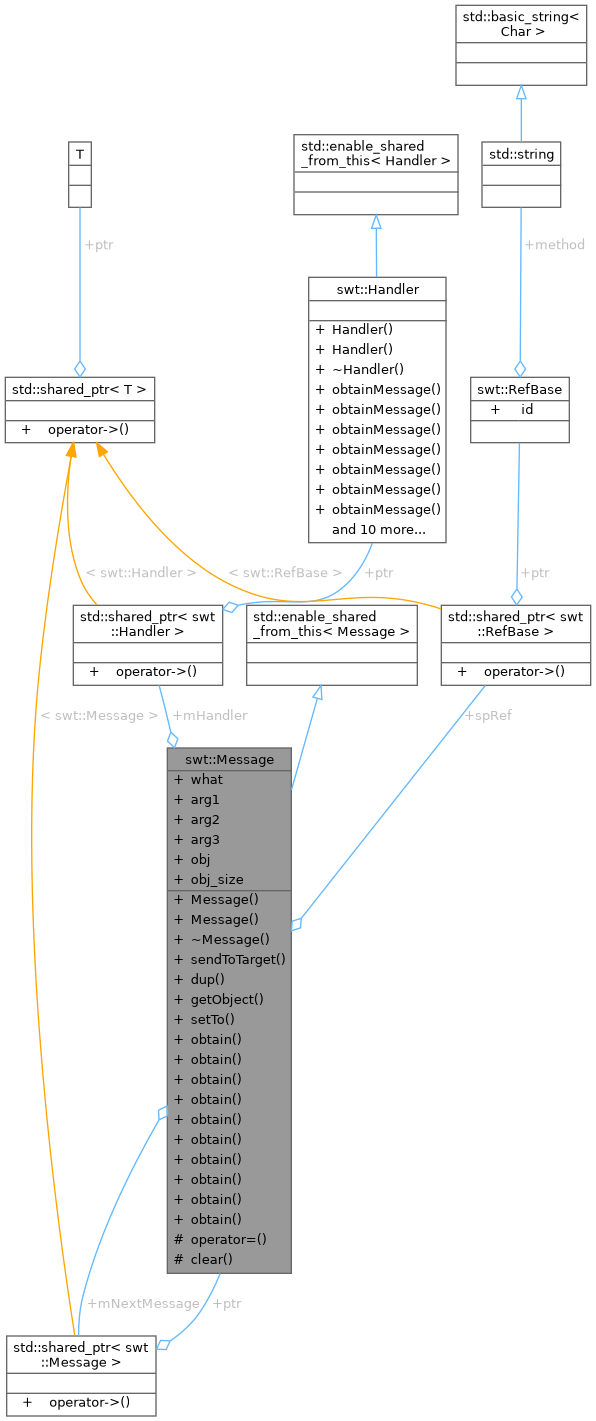

Collaboration diagram for swt::Message:

Public Member Functions
	Message ()
	Default constructor - creates empty message.

	Message (Message &other)
	Copy constructor - deep copy from another message.

virtual	~Message ()
	Virtual destructor.

bool	sendToTarget ()
	Send this message to its target handler.

std::shared_ptr< Message >	dup () const
	Create a deep copy of this message.

template<typename T >
void	getObject (std::shared_ptr< T > &obj)
	Get attached object as shared pointer of type T.

void	setTo (const Message &other)
	Set this message to another message's contents.

Static Public Member Functions
static std::shared_ptr< Message >	obtain ()
	Obtain a new empty message.

static std::shared_ptr< Message >	obtain (const Message *message)
	Obtain a copy of an existing message.

static std::shared_ptr< Message >	obtain (const std::shared_ptr< Handler > &handler)
	Obtain a message associated with a handler.

static std::shared_ptr< Message >	obtain (const std::shared_ptr< Handler > &handler, int32_t obtain_what)
	Obtain a message with handler and type code.

static std::shared_ptr< Message >	obtain (const std::shared_ptr< Handler > &handler, int32_t obtain_what, int32_t obtain_arg1)
	Obtain a message with handler, type code, and argument.

static std::shared_ptr< Message >	obtain (const std::shared_ptr< Handler > &handler, int32_t obtain_what, void *obtain_obj)
	Obtain a message with handler, type code, and object pointer.

static std::shared_ptr< Message >	obtain (const std::shared_ptr< Handler > &handler, int32_t obtain_what, int32_t obtain_arg1, int32_t obtain_arg2)
	Obtain a message with handler, type code, and two arguments.

static std::shared_ptr< Message >	obtain (const std::shared_ptr< Handler > &handler, int32_t obtain_what, int32_t obtain_arg1, int32_t obtain_arg2, void *obtain_obj)
	Obtain a message with handler, type code, two arguments, and object pointer.

static std::shared_ptr< Message >	obtain (const std::shared_ptr< Handler > &handler, int32_t obtain_what, int32_t obtain_arg1, int32_t obtain_arg2, int32_t obtain_arg3)
	Obtain a message with handler, type code, and three arguments.

static std::shared_ptr< Message >	obtain (const std::shared_ptr< Handler > &handler, int32_t obtain_what, std::shared_ptr< RefBase > obtain_spRef)
	Obtain a message with handler, type code, and smart pointer reference.

Public Attributes
std::shared_ptr< Handler >	mHandler
	Target handler.

std::shared_ptr< Message >	mNextMessage
	Next message in queue.

int32_t	what
	Message type code.

int32_t	arg1
	First argument.

int32_t	arg2
	Second argument.

int32_t	arg3
	Third argument.

void *	obj
	Raw object pointer.

ssize_t	obj_size
	Size of object (if applicable)

std::shared_ptr< RefBase >	spRef
	Smart pointer reference.

Protected Member Functions
Message &	operator= (const Message &other)
	Assignment operator - deep copy from another message.

void	clear ()
	Clear all fields in the message.

Friends
class	Handler

class	EventQueue

class	SLLooper

Detailed Description

Message object for event-driven communication between threads and handlers.

Message encapsulates data and metadata for asynchronous communication in the event loop framework. It supports flexible construction, deep copy, and safe transfer between threads. Each Message can be associated with a Handler and posted to an event queue (EventQueue) for timed or immediate processing.

Key features:

Flexible construction: Multiple static obtain() overloads for various use cases
Deep copy: dup() and setTo() for safe message duplication
Object attachment: Support for raw pointers and smart pointers (spRef)
Argument fields: Four integer arguments for custom data
Safe handler association: mHandler for target handler
Chaining: mNextMessage for message queueing

auto msg = Message::obtain(handler, 1, 42, 0);
msg->obj = somePtr;
handler->sendMessage(msg);

See also: Handler, EventQueue, SLLooper

Definition at line 37 of file Message.h.

Constructor & Destructor Documentation

◆ Message() [1/2]

swt::Message::Message ( )

Default constructor - creates empty message.

Definition at line 6 of file Message.cpp.

References mHandler, mNextMessage, and spRef.

◆ Message() [2/2]

swt::Message::Message ( Message & other )

Copy constructor - deep copy from another message.

Parameters

other Source message to copy from

Definition at line 21 of file Message.cpp.

References setTo().

Here is the call graph for this function:

◆ ~Message()

swt::Message::~Message ( )

virtual

Virtual destructor.

Definition at line 34 of file Message.cpp.

Member Function Documentation

◆ clear()

void swt::Message::clear ( )

protected

Clear all fields in the message.

Definition at line 168 of file Message.cpp.

References arg1, arg2, arg3, mHandler, mNextMessage, obj, obj_size, spRef, and what.

◆ dup()

std::shared_ptr< Message > swt::Message::dup ( ) const

Create a deep copy of this message.

Returns: Shared pointer to duplicated Message

Definition at line 163 of file Message.cpp.

References obtain().

Here is the call graph for this function:

◆ getObject()

template<typename T >

void swt::Message::getObject ( std::shared_ptr< T > & obj )

inline

Get attached object as shared pointer of type T.

Template Parameters

T	Target type

Parameters

obj	Output shared pointer

Definition at line 177 of file Message.h.

References obj, and spRef.

◆ obtain() [1/10]

std::shared_ptr< Message > swt::Message::obtain ( )

static

Obtain a new empty message.

Returns: Shared pointer to new Message

Definition at line 38 of file Message.cpp.

Referenced by dup(), obtain(), obtain(), obtain(), obtain(), obtain(), obtain(), obtain(), obtain(), obtain(), swt::Handler::obtainMessage(), swt::Handler::obtainMessage(), swt::Handler::obtainMessage(), swt::Handler::obtainMessage(), swt::Handler::obtainMessage(), swt::Handler::obtainMessage(), swt::Handler::obtainMessage(), and swt::Handler::obtainMessage().

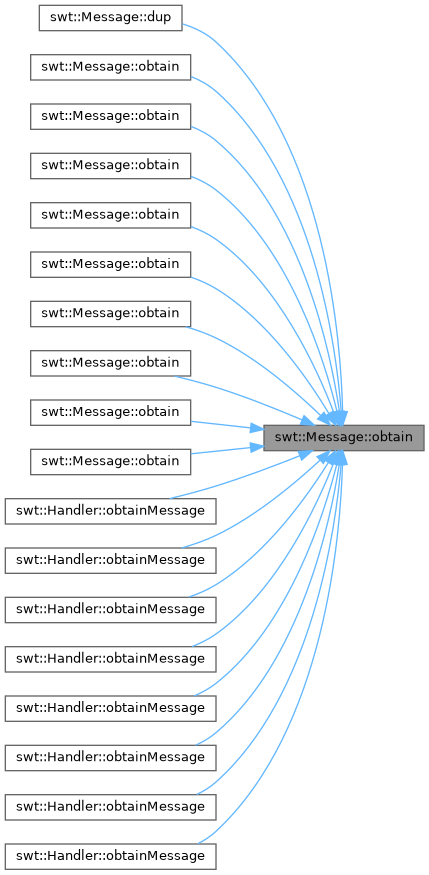

Here is the caller graph for this function:

◆ obtain() [2/10]

std::shared_ptr< Message > swt::Message::obtain ( const Message * message )

static

Obtain a copy of an existing message.

Parameters

message Pointer to source message

Returns: Shared pointer to new Message

Definition at line 117 of file Message.cpp.

References arg1, arg2, arg3, mHandler, obj, obtain(), spRef, and what.

Here is the call graph for this function:

◆ obtain() [3/10]

std::shared_ptr< Message > swt::Message::obtain ( const std::shared_ptr< Handler > & handler )

static

Obtain a message associated with a handler.

Parameters

handler Target handler

Returns: Shared pointer to new Message

See also: Handler

Definition at line 44 of file Message.cpp.

References obtain().

Here is the call graph for this function:

◆ obtain() [4/10]

std::shared_ptr< Message > swt::Message::obtain	(	const std::shared_ptr< Handler > &	handler,
		int32_t	obtain_what
	)

static

Obtain a message with handler and type code.

Parameters

handler	Target handler
obtain_what	Message type code

Returns: Shared pointer to new Message

Definition at line 51 of file Message.cpp.

References obtain().

Here is the call graph for this function:

◆ obtain() [5/10]

std::shared_ptr< Message > swt::Message::obtain	(	const std::shared_ptr< Handler > &	handler,
		int32_t	obtain_what,
		int32_t	obtain_arg1
	)

static

Obtain a message with handler, type code, and argument.

Parameters

handler	Target handler
obtain_what	Message type code
obtain_arg1	First argument

Returns: Shared pointer to new Message

Definition at line 59 of file Message.cpp.

References obtain().

Here is the call graph for this function:

◆ obtain() [6/10]

std::shared_ptr< Message > swt::Message::obtain	(	const std::shared_ptr< Handler > &	handler,
		int32_t	obtain_what,
		int32_t	obtain_arg1,
		int32_t	obtain_arg2
	)

static

Obtain a message with handler, type code, and two arguments.

Parameters

handler	Target handler
obtain_what	Message type code
obtain_arg1	First argument
obtain_arg2	Second argument

Returns: Shared pointer to new Message

Definition at line 80 of file Message.cpp.

References obtain().

Here is the call graph for this function:

◆ obtain() [7/10]

std::shared_ptr< Message > swt::Message::obtain	(	const std::shared_ptr< Handler > &	handler,
		int32_t	obtain_what,
		int32_t	obtain_arg1,
		int32_t	obtain_arg2,
		int32_t	obtain_arg3
	)

static

Obtain a message with handler, type code, and three arguments.

Parameters

handler	Target handler
obtain_what	Message type code
obtain_arg1	First argument
obtain_arg2	Second argument
obtain_arg3	Third argument

Returns: Shared pointer to new Message

Definition at line 105 of file Message.cpp.

References obtain().

Here is the call graph for this function:

◆ obtain() [8/10]

std::shared_ptr< Message > swt::Message::obtain	(	const std::shared_ptr< Handler > &	handler,
		int32_t	obtain_what,
		int32_t	obtain_arg1,
		int32_t	obtain_arg2,
		void *	obtain_obj
	)

static

Obtain a message with handler, type code, two arguments, and object pointer.

Parameters

handler	Target handler
obtain_what	Message type code
obtain_arg1	First argument
obtain_arg2	Second argument
obtain_obj	Object pointer

Returns: Shared pointer to new Message

Definition at line 92 of file Message.cpp.

References obtain().

Here is the call graph for this function:

◆ obtain() [9/10]

std::shared_ptr< Message > swt::Message::obtain	(	const std::shared_ptr< Handler > &	handler,
		int32_t	obtain_what,
		std::shared_ptr< RefBase >	obtain_spRef
	)

static

Obtain a message with handler, type code, and smart pointer reference.

Parameters

handler	Target handler
obtain_what	Message type code
obtain_spRef	Shared pointer reference

Returns: Shared pointer to new Message

Definition at line 133 of file Message.cpp.

References obtain().

Here is the call graph for this function:

◆ obtain() [10/10]

std::shared_ptr< Message > swt::Message::obtain	(	const std::shared_ptr< Handler > &	handler,
		int32_t	obtain_what,
		void *	obtain_obj
	)

static

Obtain a message with handler, type code, and object pointer.

Parameters

handler	Target handler
obtain_what	Message type code
obtain_obj	Object pointer

Returns: Shared pointer to new Message

Definition at line 69 of file Message.cpp.

References obtain().

Here is the call graph for this function:

◆ operator=()

Message & swt::Message::operator= ( const Message & other )

protected

Assignment operator - deep copy from another message.

Parameters

other Source message

Returns: Reference to this message

Definition at line 184 of file Message.cpp.

References setTo().

Here is the call graph for this function:

◆ sendToTarget()

bool swt::Message::sendToTarget ( )

Send this message to its target handler.

Returns: true if message was successfully sent

See also: Handler

Definition at line 146 of file Message.cpp.

References mHandler.

◆ setTo()

void swt::Message::setTo ( const Message & other )

Set this message to another message's contents.

Parameters

other Source message

Definition at line 190 of file Message.cpp.

References arg1, arg2, arg3, obj, obj_size, spRef, and what.

Referenced by Message(), and operator=().

Here is the caller graph for this function:

Friends And Related Symbol Documentation

◆ EventQueue

friend class EventQueue

friend

Definition at line 218 of file Message.h.

◆ Handler

friend class Handler

friend

Definition at line 217 of file Message.h.

◆ SLLooper

friend class SLLooper

friend

Definition at line 219 of file Message.h.

Member Data Documentation

◆ arg1

int32_t swt::Message::arg1

First argument.

Definition at line 206 of file Message.h.

Referenced by clear(), obtain(), and setTo().

◆ arg2

int32_t swt::Message::arg2

Second argument.

Definition at line 207 of file Message.h.

Referenced by clear(), obtain(), and setTo().

◆ arg3

int32_t swt::Message::arg3

Third argument.

Definition at line 208 of file Message.h.

Referenced by clear(), obtain(), and setTo().

◆ mHandler

std::shared_ptr<Handler> swt::Message::mHandler

Target handler.

Definition at line 202 of file Message.h.

Referenced by clear(), Message(), obtain(), and sendToTarget().

◆ mNextMessage

std::shared_ptr<Message> swt::Message::mNextMessage

Next message in queue.

Definition at line 203 of file Message.h.

Referenced by clear(), and Message().

◆ obj

void* swt::Message::obj

Raw object pointer.

Definition at line 210 of file Message.h.

Referenced by clear(), getObject(), obtain(), and setTo().

◆ obj_size

ssize_t swt::Message::obj_size

Size of object (if applicable)

Definition at line 211 of file Message.h.

Referenced by clear(), and setTo().

◆ spRef

std::shared_ptr<RefBase> swt::Message::spRef

Smart pointer reference.

Definition at line 212 of file Message.h.

Referenced by clear(), getObject(), Message(), obtain(), and setTo().

◆ what

int32_t swt::Message::what

Message type code.

Definition at line 205 of file Message.h.

Referenced by clear(), obtain(), and setTo().

The documentation for this class was generated from the following files:

include/Message.h
src/Message.cpp

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Friends

Detailed Description

Constructor & Destructor Documentation

◆ Message() [1/2]

◆ Message() [2/2]

◆ ~Message()

Member Function Documentation

◆ clear()

◆ dup()

◆ getObject()

◆ obtain() [1/10]

◆ obtain() [2/10]

◆ obtain() [3/10]

◆ obtain() [4/10]

◆ obtain() [5/10]

◆ obtain() [6/10]

◆ obtain() [7/10]

◆ obtain() [8/10]

◆ obtain() [9/10]

◆ obtain() [10/10]

◆ operator=()

◆ sendToTarget()

◆ setTo()

Friends And Related Symbol Documentation

◆ EventQueue

◆ Handler

◆ SLLooper

Member Data Documentation

◆ arg1

◆ arg2

◆ arg3

◆ mHandler

◆ mNextMessage

◆ obj

◆ obj_size

◆ spRef

◆ what
