Advanced C++ Event Loop Framework for High-Performance Asynchronous Task Management with Coroutines

SW Task Framework is a modern event loop framework designed to efficiently and safely manage asynchronous tasks. The framework provides a flexible architecture for handling messages, timers, promises, and coroutines in multi-threaded C++ applications.

Features

Core Components

Component	Description	Key Features
SLLooper	Main event loop coordinator	Thread-safe posting, coroutine integration
EventQueue	High-performance Event queue	Priority handling, delayed execution, templates
TimerManager	Precise timer management	One-shot & periodic timers, microsecond precision
Promise System	Modern async pattern (JS A+)	Chainable continuations, error handling
Coroutines System	C++20 coroutines integration	Natural async/await syntax, suspend/resume
Handler Pattern	Message-based communication	Android-style messaging, flexible dispatching
CPU Task Executor	CPU-bound task isolation	Timeout protection

Advanced Features

C++20 Coroutines Support: Native co_await integration with awaitWork, awaitPost, awaitDelay
Dual Async Paradigm: Both Promise chains and coroutines for different use cases
Asynchronous Task Management: Post functions with futures, delayed execution, promise-based workflows
High-Precision Timers: Microsecond accuracy, chrono duration support, RAII timer management
Thread-Safe Operations: Lock-free queues, atomic operations, safe cross-thread communication
CPU-Bound Task Isolation: Separate CPU-bound task thread for intensive operations
Android-Style Messaging: Familiar Handler/Message pattern for structured communication
Modern C++ Design: C++20 features, RAII principles, smart pointer management

Architecture

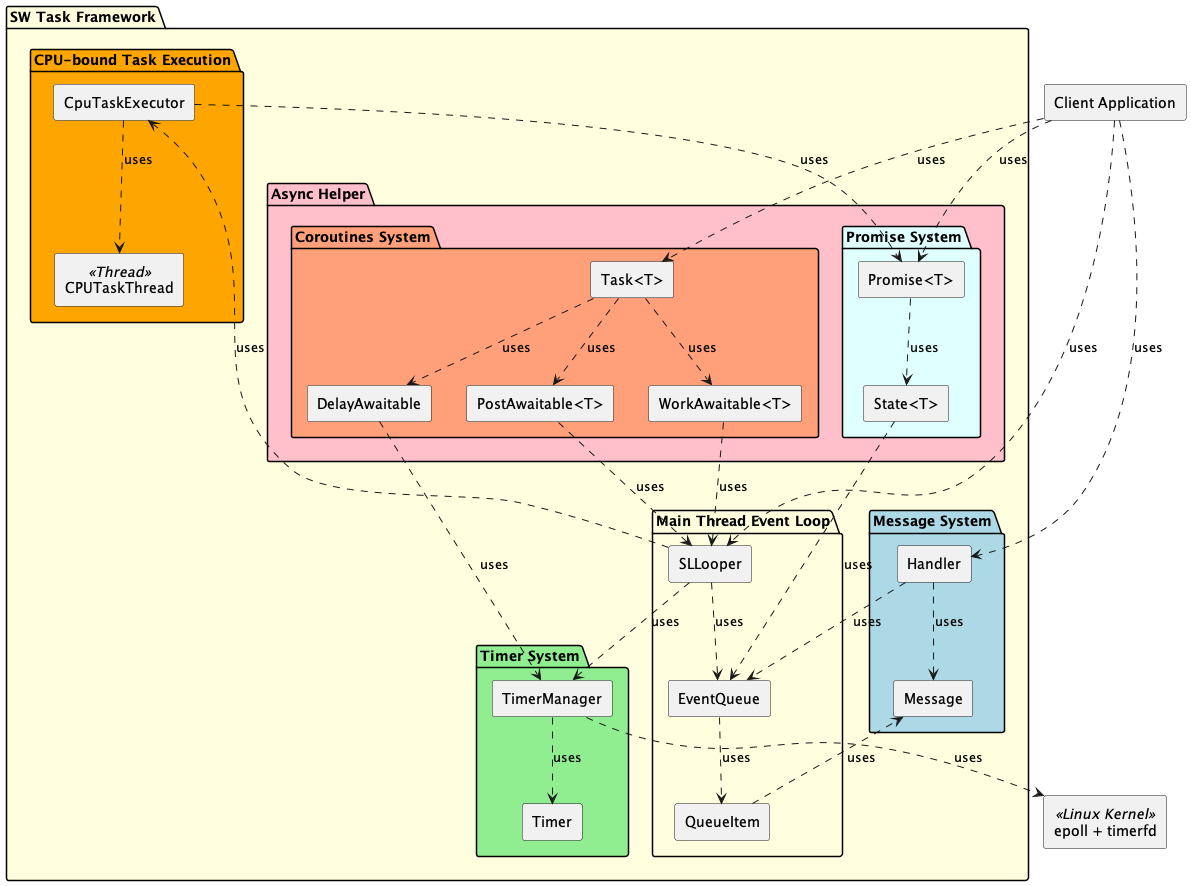

System Overview

Thread Model with Coroutines

Main Thread              Event Loop Thread           CPU-bound Task thread
     │                          │                           │
     │ post(normal_task)        │                           │
     ├─────────────────────────►│                           │
     │                          │ process tasks             │
     │ co_await awaitWork()     │ delegate                  │
     ├─────────────────────────►│ ─────────────────────────►│
     │ (coroutine suspended)    │                           │ execute
     │                          │◄──────────────────────────┤
     │◄─────────────────────────┤ resume coroutine          │
     │ (coroutine resumed)      │                           │

API Overview

1. Function Posting & Promise

Category	API Name	Description
Function Posting	post(func, args...)	Post a function or lambda to the event loop for immediate execution. Returns a `std::future` for result retrieval.
	postDelayed(delayMs, func, args...)	Post a function or lambda to the event loop to be executed after a specified delay in milliseconds.
	postWithTimeout(func, timeout_ms)	Post a function to be executed after a timeout. Returns a `Timer` object for cancellation.
Promise	createPromise<T>()	Create a manual promise object of type `T`. Allows explicit fulfillment or rejection from any thread.
	postWork(func)	Run a CPU-bound function in a dedicated worker thread. Returns a `Promise` for result and chaining.
	postWork(func, timeout)	Run a CPU-bound function with a timeout. If the function does not complete in time, the promise is rejected.
	Promise::set_value(value)	Fulfill a promise with a value, triggering any chained continuations.
	Promise::then(callback)	Chain a callback to be executed when the promise is fulfilled. Supports type transformation.
	Promise::catchError(callback)	Chain an error handler to be executed if the promise is rejected with an exception.

2. Coroutines (co_await)

Category	API Name	Description
Coroutine Creation	Task<T> function_name()	Create a coroutine function that returns `Task<T>`. Use `co_return` to return values.
	task.start()	Start execution of a coroutine task. Must be called after task. creation.
	task.done()	Check if coroutine has completed execution.
co_await Operations	co_await awaitWork(func)	Execute a CPU-bound function on background thread. Suspends coroutine until completion.
	co_await awaitPost(func)	Execute a function on main event loop thread. Suspends coroutine until completion.
	co_await awaitDelay(milliseconds)	Suspend coroutine for specified time duration. Non-blocking delay operation.
Error Handling	try/catch with co_await	Use standard C++ exception handling with coroutines. Exceptions propagate naturally.

3. Timer & Timer Control

Category	API Name	Description
Timer	addTimer(cb, delay)	Create a one-shot timer that executes a callback after a specified delay (ms).
	addPeriodicTimer(cb, interval)	Create a periodic timer that executes a callback repeatedly at the given interval (ms).
Timer Control	Timer::cancel()	Cancel the timer, preventing further callbacks.
	Timer::isActive()	Check if the timer is currently active and not cancelled.
	Timer::restart(delay)	Restart a one-shot timer with a new delay.

4. Message & Handler

Category	API Name	Description
Message Creation	obtainMessage()	Create an empty message object.
	obtainMessage(what, ...)	Create a message with a type code and optional arguments.
Message Sending	sendMessage(msg)	Send a message for immediate processing by the handler.
	sendMessageDelayed(msg, delay)	Send a message to the handler after a specified delay (ms).
Message Management	hasMessages(what)	Check if there are pending messages of a given type.
	removeMessages(what)	Remove all messages of a given type from the queue.
Processing	dispatchMessage(msg)	Dispatch a message to the handler for processing.
	handleMessage(msg)	Override this method in your handler to process messages.

Examples

1. Function Posting & Promise

Chained asynchronous workflow with error handling:

#include "SLLooper.h"
#include <iostream>
#include <stdexcept>
#include <thread>

int computeHeavy(int x) {
    if (x < 0) throw std::runtime_error("Negative input!");
    std::this_thread::sleep_for(std::chrono::milliseconds(100));
    return x * x;
}

int main() {
    auto looper = std::make_shared<SLLooper>();

    looper->postWork([] { return 10; })
    .then(looper, [looper](int v) {
        std::cout << "First result: " << v << std::endl;
        return looper->postWork([v] { return computeHeavy(v); });
    })
    .then(looper, [](int squared) {
        std::cout << "Squared: " << squared << std::endl;
        return squared / 2;
    })
    .catchError(looper, [](std::exception_ptr ex) {
        try { if (ex) std::rethrow_exception(ex); }
        catch (const std::exception& e) {
            std::cout << "Error: " << e.what() << std::endl;
        }
        return -1;
    })
    .then(looper, [](int final) {
        std::cout << "Final result: " << final << std::endl;
        return 0;
    });

    std::this_thread::sleep_for(std::chrono::milliseconds(500));
    return 0;
}

2. Coroutines (co_await)

Sequential async operations with natural syntax:

#include "SLLooper.h"
#include "Task.h"
#include <iostream>
#include <stdexcept>
#include <thread>

using namespace swt;

int fetchUserData(int userId) {
    std::this_thread::sleep_for(std::chrono::milliseconds(100));
    return userId * 10; // Simulate fetched data
}

void processUserData(int data) {
    std::this_thread::sleep_for(std::chrono::milliseconds(50));
    std::cout << "Processed data: " << data << std::endl;
}

Task<void> userWorkflow(std::shared_ptr<SLLooper> looper, int userId) {
    try {
        std::cout << "Starting workflow for user " << userId << std::endl;

        // Fetch data on background thread
        int userData = co_await looper->awaitWork([userId]() {
            return fetchUserData(userId);
        });

        std::cout << "User data fetched: " << userData << std::endl;

        // Wait a bit
        co_await looper->awaitDelay(200);

        // Process on main thread
        co_await looper->awaitPost([userData]() {
            processUserData(userData);
        });

        std::cout << "Workflow completed!" << std::endl;

    } catch (const std::exception& e) {
        std::cout << "Workflow error: " << e.what() << std::endl;
    }
}

int main() {
    auto looper = std::make_shared<SLLooper>();

    auto task = userWorkflow(looper, 123);
    task.start();

    // Wait for completion
    while (!task.done()) {
        std::this_thread::sleep_for(std::chrono::milliseconds(50));
    }

    return 0;
}

Error handling with coroutines:

#include "SLLooper.h"
#include "Task.h"
#include <iostream>
#include <stdexcept>

using namespace swt;

Task<void> errorHandlingExample(std::shared_ptr<SLLooper> looper) {
    try {
        int result = co_await looper->awaitWork([]() -> int {
            throw std::runtime_error("Something went wrong!");
            return 42;
        });

        std::cout << "This won't be reached: " << result << std::endl;

    } catch (const std::exception& e) {
        std::cout << "Caught error: " << e.what() << std::endl;

        // Recovery operation
        co_await looper->awaitDelay(100);
        std::cout << "Recovery completed" << std::endl;
    }
}

int main() {
    auto looper = std::make_shared<SLLooper>();

    auto task = errorHandlingExample(looper);
    task.start();

    std::this_thread::sleep_for(std::chrono::seconds(1));
    return 0;
}

3. Timer & Timer Control

Periodic timer with dynamic restart and cancellation:

#include "SLLooper.h"
#include <iostream>
#include <atomic>
#include <thread>

int main() {
    auto looper = std::make_shared<SLLooper>();
    std::atomic<int> count{0};

    auto timer = looper->addPeriodicTimer([&]() {
        std::cout << "Tick: " << ++count << std::endl;
        if (count == 3) {
            std::cout << "Restarting timer with new interval..." << std::endl;
            timer.restart(200);
        }
        if (count == 6) {
            std::cout << "Cancelling timer." << std::endl;
            timer.cancel();
        }
    }, 100);

    std::this_thread::sleep_for(std::chrono::milliseconds(1500));
    return 0;
}

4. Message & Handler

Custom handler with message dispatch and delayed messaging:

#include "SLLooper.h"
#include "Handler.h"
#include <iostream>
#include <memory>
#include <thread>

class MyHandler : public Handler {
public:
    MyHandler(std::shared_ptr<SLLooper> looper) : Handler(looper) {}
    void handleMessage(const std::shared_ptr<Message>& msg) override {
        if (msg->what == 1) {
            std::cout << "Process data: " << msg->arg1 << std::endl;
        } else if (msg->what == 2) {
            std::cout << "Delayed event: " << msg->arg2 << std::endl;
        }
    }
};

int main() {
    auto looper = std::make_shared<SLLooper>();
    auto handler = std::make_shared<MyHandler>(looper);

    auto msg1 = handler->obtainMessage(1, 42, 0);
    handler->sendMessage(msg1);

    auto msg2 = handler->obtainMessage(2, 0, 99);
    handler->sendMessageDelayed(msg2, 200);

    std::this_thread::sleep_for(std::chrono::milliseconds(500));
    return 0;
}

5. Combined Example: Coroutines with Timer and Promise

Workflow using both coroutines and promises:

#include "SLLooper.h"
#include "Task.h"
#include <iostream>
#include <thread>

using namespace swt;

int fetchData() {
    std::this_thread::sleep_for(std::chrono::milliseconds(100));
    return 123;
}

Task<void> timerTriggeredWorkflow(std::shared_ptr<SLLooper> looper) {
    std::cout << "Waiting for timer..." << std::endl;

    // Wait for timer delay
    co_await looper->awaitDelay(200);

    std::cout << "Timer triggered, starting data fetch..." << std::endl;

    // Fetch data using Promise system
    auto promise = looper->postWork(fetchData);

    // Convert promise to coroutine-compatible result
    int result = co_await looper->awaitWork([promise]() mutable {
        return promise.get(); // Wait for promise completion
    });

    std::cout << "Data received: " << result << std::endl;

    // Final processing on main thread
    co_await looper->awaitPost([result]() {
        std::cout << "Final processing: " << result * 2 << std::endl;
    });
}

int main() {
    auto looper = std::make_shared<SLLooper>();

    auto task = timerTriggeredWorkflow(looper);
    task.start();

    std::this_thread::sleep_for(std::chrono::seconds(1));
    return 0;
}

Comparison: Promises vs Coroutines

Aspect	Promises	Coroutines
Syntax	Callback chains with `.then()`	Sequential with `co_await`
Error Handling	`.catchError()` callbacks	Standard `try/catch`
Readability	Can become nested	Linear, like sync code
Debugging	Harder with callback stacks	Natural debugging flow
Performance	Lower overhead	Slight coroutine overhead
Use Case	Simple async chains	Complex async workflows

Building

Requirements

C++20 compatible compiler (GCC 10+, Clang 10+, MSVC 2019+)
CMake 3.12+
Coroutines support: -fcoroutines (GCC) or -fcoroutines-ts (Clang)
Optional: Doxygen for documentation

Build Instructions

git clone https://github.com/taikt/sw_task.git
cd sw_task
mkdir build && cd build
cmake -DCMAKE_CXX_STANDARD=20 ..
make -j$(nproc)
make test
sudo make install

For coroutines support, ensure compiler flags:

target_compile_options(your_target PRIVATE -fcoroutines -std=c++20)

Testing

cd build
make test
ctest --verbose

Coroutine-specific tests:

./examples/co_await_example
./examples/fetch_coawait
./examples/coawait_simple

Performance

Operation	Throughput	Latency	Memory
Task Posting	1M ops/sec	< 1μs	64 bytes/task
Timer Creation	100K/sec	< 10μs	128 bytes/timer
Promise Chain	500K/sec	< 5μs	256 bytes/chain
Coroutine Task	400K/sec	< 8μs	512 bytes/task
Message Send	2M ops/sec	< 0.5μs	32 bytes/msg

Contributing

C++20 standard compliance
Google C++ Style Guide
Comprehensive unit tests for new features
Doxygen documentation for public APIs
RAII principles and smart pointer usage
Coroutine safety and best practices

License

MIT License

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Author: Tran Anh Tai
Email: tai2..nosp@m.tran.nosp@m.@lge..nosp@m.com (taitr.nosp@m.anan.nosp@m.hvn@g.nosp@m.mail.nosp@m..com)
Repository: https://github.com/taikt/sw_task
Documentation: https://taikt.github.io/sw_task/

Table of Contents

Features

Core Components

Advanced Features

Architecture

System Overview

Thread Model with Coroutines

API Overview

1. Function Posting & Promise

2. Coroutines (co_await)

3. Timer & Timer Control

4. Message & Handler

Examples

1. Function Posting & Promise

2. Coroutines (co_await)

3. Timer & Timer Control

4. Message & Handler

5. Combined Example: Coroutines with Timer and Promise

Comparison: Promises vs Coroutines

Building

Requirements

Build Instructions

Testing

Performance

Contributing

License
